Specification JAG

Specification JAG

Technical data

Download Center Technical card
Metric units
Imperials units
PED
ASME
Type
Dimensions [mm]
A B C D E max
Allowable pressurebar
Max. no. of plates
Type and material of connections
Connections sizes
JFA-003702804342105546/10/16/2587GZ/ET, SS, TIG1¼”
JFA-006704906442105546/10/16/2587GZ/ET, SS, TIG1¼”
JFA-009707108642105546/10/16/2587GZ/ET, SS, TIG1¼”
JFB-01013340059431511086/10/16/25173GZ/ET, SS, TIG2”
JFB-01513374093431511086/10/16/25173GZ/ET, SS, TIG2”
JFB-0251331100129431511086/10/16/25173GZ/ET, SS, TIG2”
JFC-01521539067044011206/10/16/25169NBR, EPDM VITON, SS, TIDN80
JFC-025215720100044011256/10/16/25169NBR, EPDM VITON, SS, TIDN80
JFC-0352151010129044011256/10/16/25169NBR, EPDM VITON, SS, TIDN80
JFD-0302607301090510/550* for PN1026506/10/16/25560NBR, EPDM VITON, SS, TIDN100
JFD-06026013801740510/550* for PN1626506/10/16/25560NBR, EPDM VITON, SS, TIDN100
JFD-0802601860225855021436/10/16/25560NBR, EPDM VITON, SS, TIDN100
JFE-045325900132665626556/10/16/25743NBR, EPDM VITON, SS, TIDN150
JFE-0653251300172465626606/10/16/25743NBR, EPDM VITON, SS, TIDN150
JFE-0853251600202465626606/10/16/25743NBR, EPDM VITON, SS, TIDN150
JFE-1153252100252465626606/10/16/25743NBR, EPDM VITON, SS, TIDN150
JFF-0753951100183180531946/10/16/251109NBR, EPDM, VITON, SS, TIDN200
JFG-1004551400199091527616/10/16/251109NBR, EPDM VITON, SS, TIDN250
JFG-1504552100269091527616/10/16/251109NBR, EPDM VITON, SS, TIDN250
JFG-2004552600319091527616/10/16/251109NBR, EPDM VITON, SS, TIDN250
JFH-15059516602450118028306/10/16/25887NBR, EPDM VITON, SS, TIDN350
JFH-20059522002990118028306/10/16/25887NBR, EPDM VITON, SS, TIDN350
JFH-25059525503340118028306/10/16/25887NBR, EPDM VITON, SS, TIDN350
JFA-003702804342105546/10/16/2587GZ/ET, SS, TI1¼’’ NPT
JFA-006704906442105546/10/16/2587GZ/ET, SS, TI1¼’’ NPT
JFA-009707108642105546/10/16/2587GZ/ET, SS, TI1¼” NPT
JFB-01013340059431511086/10/16/25173GZ/ET, SS, TI2”  NPT
JFB-01513374093431511086/10/16/25173GZ/ET, SS, TI2” NPT
JFB-0251331100129431511086/10/16/25173GZ/ET, SS, TI2” NPT
JFC-01521539067044011206/10/16/25169NBR, EPDM VITON, SS, TI3’’
JFC-025215720100044011256/10/16/25169NBR, EPDM VITON, SS, TI3’’
JFC-0352151010129044011256/10/16/25169NBR, EPDM VITON, SS, TI3’’
JFD-0302607301090510/550* for PN1026506/10/16/25560NBR, EPDM VITON, SS, TI4’’
JFD-06026013801740510/550* for PN1626506/10/16/25560NBR, EPDM VITON, SS, TI4’’
JFE-045325900132665626556/10/16/25743NBR, EPDM VITON, SS, TI6’’
JFE-0653251300172465626606/10/16/25743NBR, EPDM VITON, SS, TI6’’
JFE-0853251600202465626606/10/16/25743NBR, EPDM VITON, SS, TI6’’
JFE-1153252100252465626606/10/16/25743NBR, EPDM VITON, SS, TI6’’
JFG-1004551400199091527616/10/16/251109NBR, EPDM VITON, SS, TI10’’
JFG-1504552100269091527616/10/16/251109NBR, EPDM VITON, SS, TI10’’
JFG-2004552600319091527616/10/16/251109NBR, EPDM VITON, SS, TI10’’
JFH-15059516602450118028306/10/16/25887NBR, EPDM VITON, SS, TI14’’
JFH-20059522002990118028306/10/16/25887NBR, EPDM VITON, SS, TI14’’
JFH-25059525503340118028306/10/16/25887NBR, EPDM VITON, SS, TI14’’
Type
Dimensions [in]
A B C D E max
Allowable pressurepsi
Max. no. of plates
Type and material of connections
Connections sizes
JFA-0032,761117,128,2721,8150/25087GZ/ET, SS, TIG1¼”
JFA-0062,7619,325,418,2721,8150/25087GZ/ET, SS, TIG1¼”
JFA-0092,762834,058,2721,8150/25087GZ/ET, SS, TIG1¼”
JFB-0105,2415,823,3912,443,8150/250173GZ/ET, SS, TIG2”
JFB-0155,2429,136,7712,443,8150/250173GZ/ET, SS, TIG2”
JFB-0255,2443,351,0412,443,8150/250173GZ/ET, SS, TIG2”
JFC-0158,4615,426,3717,3244,5150/250169NBR, EPDM VITON, SS, TIDN80
JFC-0258,4628,439,3717,3244,5150/250169NBR, EPDM VITON, SS, TIDN80
JFC-0358,4639,850,7817,3244,5150/250169NBR, EPDM VITON, SS, TIDN80
JFD-03010,228,744,4821,65105150/250560NBR, EPDM VITON, SS, TIDN100
JFD-06010,254,370,0721,65105150/250560NBR, EPDM VITON, SS, TIDN100
JFE-04512,835,453,8925,83108150/250743NBR, EPDM VITON, SS, TIDN150
JFE-06512,851,269,6425,83108150/250743NBR, EPDM VITON, SS, TIDN150
JFE-08512,86381,4525,83108150/250743NBR, EPDM VITON, SS, TIDN150
JFE-11512,882,7100,925,83108150/250743NBR, EPDM VITON, SS, TIDN150
JFG-10017,955,180,7336,81109150/2501109NBR, EPDM VITON, SS, TIDN250
JFG-15017,982,7108,336,81109150/2501109NBR, EPDM VITON, SS, TIDN250
JFG-20017,910212836,81109150/2501109NBR, EPDM VITON, SS, TIDN250
JFH-15023,465,496,4546,46111150/250887NBR, EPDM VITON, SS, TIDN350
JFH-20023,486,6117,746,46111150/250887NBR, EPDM VITON, SS, TIDN350
JFH-25023,4100131,546,46111150/250887NBR, EPDM VITON, SS, TIDN350
JFA-0032,761117,128,2721,8150/25087GZ/ET, SS, TI1¼’’ NPT
JFA-0062,7619,325,418,2721,8150/25087GZ/ET, SS, TI1¼’’ NPT
JFA-0092,762834,058,2721,8150/25087GZ/ET, SS, TI1¼” NPT
JFB-0105,2415,823,3912,443,8150/250173GZ/ET, SS, TI2”  NPT
JFB-0155,2429,136,7712,443,8150/250173G/ETZ, SS, TI2” NPT
JFB-0255,2443,351,0412,443,8150/250173GZ/ET, SS, TI2” NPT
JFC-0158,4615,426,3717,3244,5150/250169NBR, EPDM VITON, SS, TI3’’
JFC-0258,4628,439,3717,3244,5150/250169NBR, EPDM VITON, SS, TI3’’
JFC-0358,4639,850,7817,3244,5150/250169NBR, EPDM VITON, SS, TI3’’
JFD-030 [Rod]10,228,744,4821,6545,5150/250560NBR, EPDM VITON, SS, TI4’’
JFD-030 [Profile]10,228,744,4821,65105150/250560NBR, EPDM VITON, SS, TI4’’
JFD-06010,254,370,0721,65105150/250560NBR, EPDM VITON, SS, TI4’’
JFE-04512,835,453,8925,83108150/250743NBR, EPDM VITON, SS, TI6’’
JFE-06512,851,269,6425,83108150/250743NBR, EPDM VITON, SS, TI6’’
JFE-08512,86381,4525,83108150/250743NBR, EPDM VITON, SS, TI6’’
JFE-11512,882,7100,925,83108150/250743NBR, EPDM VITON, SS, TI6’’
JFG-10017,955,180,7336,81109150/2501109NBR, EPDM VITON, SS, TI10’’
JFG-15017,982,7108,336,81109150/2501109NBR, EPDM VITON, SS, TI10’’
JFG-20017,910212836,81109150/2501109NBR, EPDM VITON, SS, TI10’’
JFH-15023,465,496,4546,46111150/250887NBR, EPDM VITON, SS, TI14’’
JFH-20023,486,6117,746,46111150/250887NBR, EPDM VITON, SS, TI14’’
JFH-25023,4100131,546,46111150/250887NBR, EPDM VITON, SS, TI14’’
WORKING PARAMETERS PED: - max. pressure: 6, 10, 16, 25, 30 bar - max. temperature: 170˚C - min temperature: -20˚C WORKING PARAMETERS ASME: - max. pressure: 150, 250, 300, 400 PSI - max. temperature: 300˚F - min temperature: -4˚F

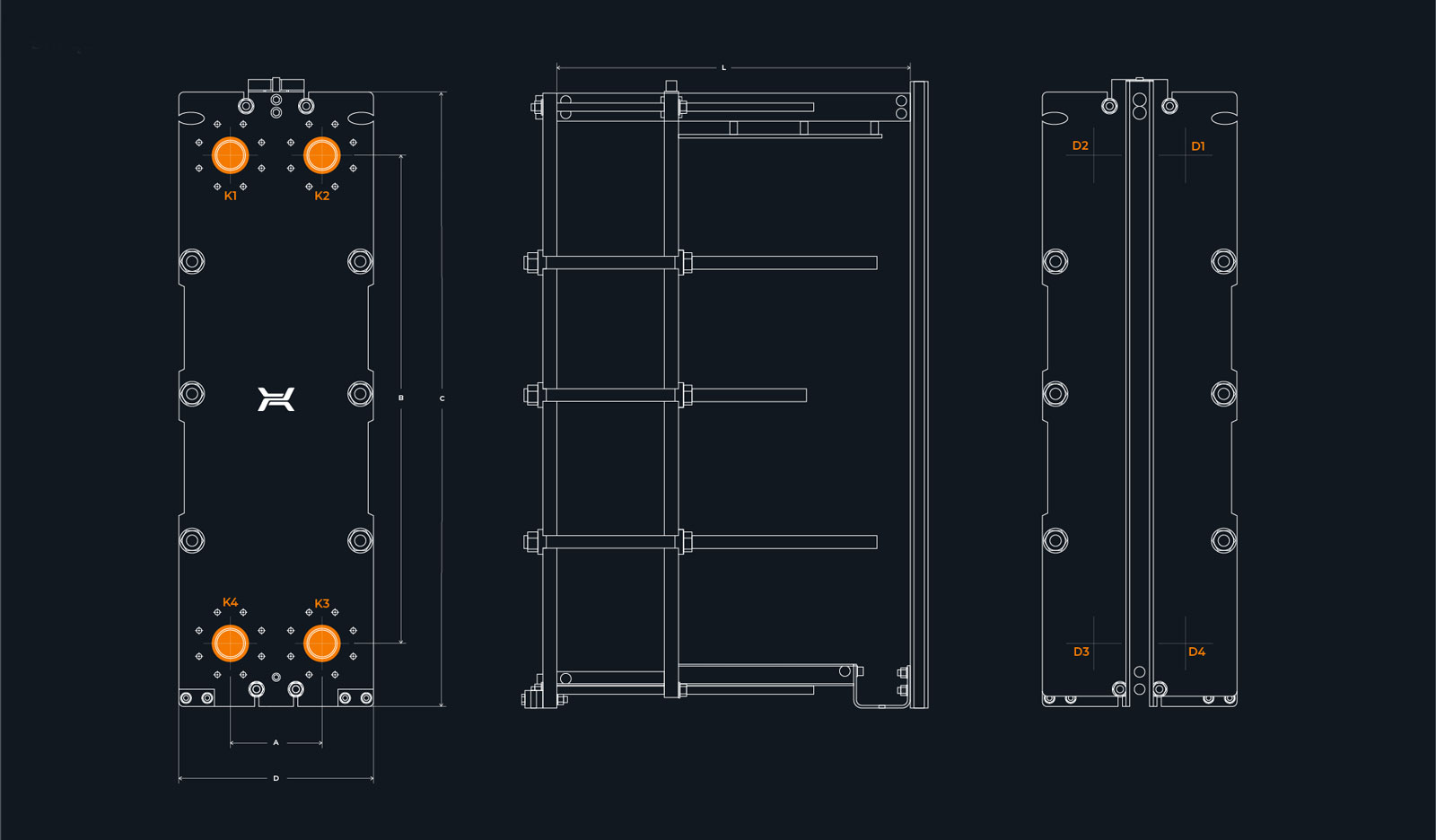

Technical drawing

Technical card
Technical drawing

In the option available upon customer's request, we offer:

  • double-wall type plates,
  • heat exchangers entirely made of stainless steel materials

Series of types

Series of types
