Plate and Frame Heat Exchangers
Gasketed plate heat exchangers are characterized by very high heat transfer efficiency and design flexibility, which allows them to be perfectly adapted to the required operating conditions. HEXONIC supplies a range of plate and frame exchangers for industrial, HVAC, sanitary, refrigeration, and food-processing duties.
The HEXONIC plate and frame exchanger range includes high-performance JAG F units, proven F Series gasketed models, and MULTISECTION stainless steel exchangers for demanding food-industry processes. This gives users a flexible portfolio covering general industrial heat exchange, serviceable gasketed systems, and hygienic process applications.
Plate and frame exchangers
Download Center
JAG F

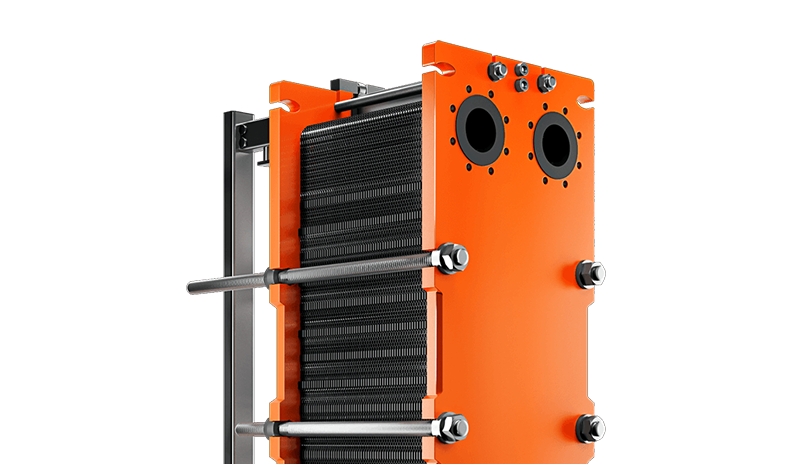

The HEXONIC JAG F plate and frame heat exchanger is a new-generation gasketed plate heat exchanger designed to deliver high thermal performance, extensive heat exchange surface, and reliable operation across a wide range of installations. Its innovative JAG heating plate corrugation pattern increases flow turbulence, improving heat transfer while helping reduce sediment accumulation.
Developed through extensive product research...
...the JAG F is engineered to be more compact, lighter, and more efficient while remaining adaptable to individual operating requirements. In addition to its plate technology, the JAG F includes a range of frame and gasket design solutions that support easier installation, dependable sealing, and efficient maintenance in demanding applications.
Key advantages of the JAG F include high thermal performance, extensive heat exchange surface, reduced sediment accumulation, and lower overall pressure drop. The exchanger can be adjusted to installation operating parameters by selecting the proper number and size of heating plates. Heating plates can be made of stainless steel or titanium for aggressive media systems or pools with salt water.
The JAG F is also a dismountable design, which allows cleaning, servicing, and future extension if required. A double-wall option is available for critical installations where media separation and fast leak detection are especially important. Typical JAG F applications include HVAC systems, sanitary engineering, district heating substations, renewable energy systems, solar collector systems, geothermal installations, cooling systems, air conditioning, server room cooling, refrigeration systems, and food-industry duties such as brewing, beverage manufacturing, oil manufacturing, sugar-making, and CIP stations.
F Series

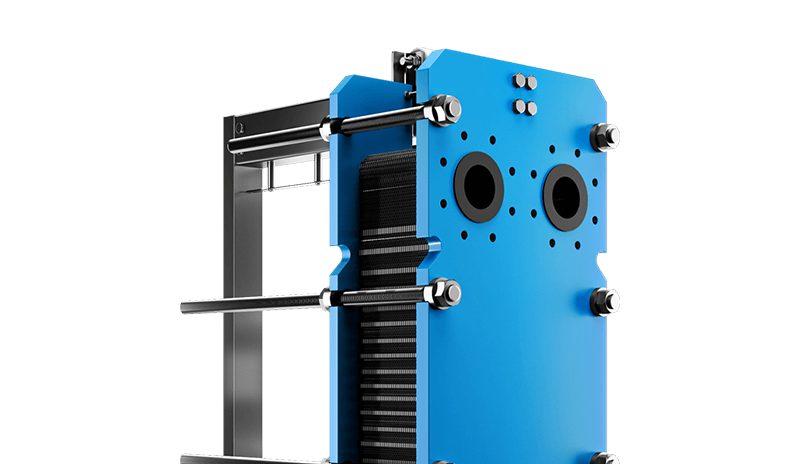

F Series plate and frame gasketed heat exchangers are reliable, proven devices positioned as an optimum solution for heat exchange duties requiring dependable operation and design flexibility. They serve as a practical general-purpose plate and frame solution within the HEXONIC range.
These exchangers are suitable for installations where high heat transfer efficiency...
...serviceability, and flexible configuration are required. As gasketed plate units, they can be adapted to different thermal duties and operating conditions, making them appropriate for a broad range of industrial and utility applications.
F Series models are particularly suitable for users looking for a dependable plate and frame solution with the benefits of maintainability, configurable plate pack design, and compatibility with a wide variety of system layouts
MULTISECTION

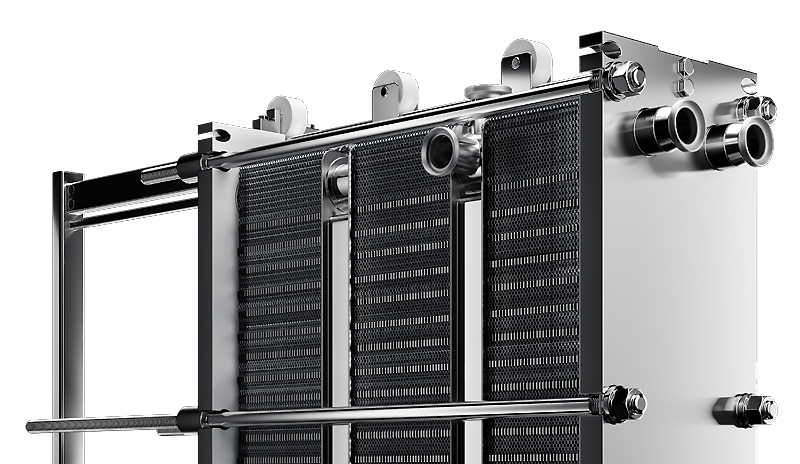

The HEXONIC MULTISECTION is a stainless steel heat exchanger developed for pasteurization and other demanding industrial processes in the food industry. It is designed to support efficient heating, cooling, and product treatment while meeting the growing technological and hygiene requirements of modern food processing companies.
As a food-industry-focused solution, the MULTISECTION combines high efficiency...
...effective energy recovery, and a high level of hygiene in a stainless steel construction. It helps improve production efficiency, reduce energy consumption, and support food safety in processes where precise thermal treatment is essential
Key benefits of the MULTISECTION include high efficiency, effective energy recovery, high hygienic standard, corrosion resistance, certified gaskets, energy savings, and expandability. It is specifically intended for food-processing environments where hygienic design and stainless steel construction are critical.
The MULTISECTION is widely used in pasteurization processes, general food-processing heating and cooling duties, brewing, sugar-making, dairy processing, beverage manufacturing, oil manufacturing, and CIP stations.
Its design includes stainless steel construction, JAG plate technology with an innovative embossing pattern, a triple system for positioning heating plates, a modified distribution zone, an optimized sealing surface, and a patented hybrid gasket attachment system. These features support hygienic performance, reliable sealing, and adaptability for demanding food-industry processes.
Frequently Asked Questions
Plate and frame heat exchangers are used where very high heat transfer efficiency and strong design flexibility are required. Within the HEXONIC range, they are applied in HVAC, industrial heating and cooling, sanitary engineering, refrigeration, district heating, renewable energy systems, and food-processing applications.
JAG F is the high-performance new-generation gasketed plate exchanger with advanced plate geometry, reduced sediment accumulation, and strong serviceability. F Series is the dependable general-purpose gasketed plate and frame solution for standard industrial and utility duties. MULTISECTION is the stainless steel hygienic solution intended for pasteurization and demanding food-industry processes.
MULTISECTION is the most suitable option for food-industry and pasteurization duties because it combines stainless steel construction, hygienic design, energy recovery, and certified gasket solutions. JAG F may also be suitable for selected food applications where a serviceable gasketed unit is required.
Yes. Gasketed plate and frame heat exchangers are designed for serviceability. In particular, the JAG F is a dismountable unit that can be opened for cleaning, servicing, and future extension by adjusting the plate pack.
